    Fair comparison of white LEDs and remote phosphor guides design choice (MAGAZINE)

    July 10, 2012
    Proponents of remote-phosphor technology are claiming a significant efficacy advantage in luminaires and lamps relative to designs that use phosphor-converted white LEDs. But as Michael Leung explains, comparisons must be made in like applications.
    Content Dam Leds En Articles Print Volume 9 Issue 7 Features Fair Comparison Of White Leds And Remote Phosphor Guides Design Choice Magazine Leftcolumn Article Thumbnailimage File
    +++++

    This article was published in the July/August 2012 issue of LEDs Magazine.

    View the Table of Contents and download the PDF file of the complete July/August 2012 issue, or view the E-zine version in your browser.

    +++++

    While there are no true white LEDs, there are numerous approaches to generating white light with LEDs. The most common solid-state lighting (SSL) luminaire and lamp designs today use white LEDs that have a phosphor applied directly in the package with a blue emitter to produce white light – phosphor-converted LEDs. Another approach called remote phosphor relies on blue LEDs, a mixing chamber, and phosphor-coated secondary optics that are physically separated from the LED source. There are proponents of both approaches, although of late the remote-phosphor side has claimed an efficacy advantage as high as 30%. In this article we will evaluate the two approaches in specific downlight and omnidirectional retrofit lamp applications to understand the tradeoffs in terms of cost, performance, and other factors.

    Creedffig1

    FIG. 1. Cree sells both white LEDs that are integrated directly into lamps and luminaires, and blue LEDs that are required for remote-phosphor applications. The company doesn’t support one approach over the other. Indeed, application requirements will generally guide the best approach. Our apples-to-apples comparison will illustrate a typical design scenario. We consider the LED chip, phosphor, and final system configuration. The evaluation is designed to keep most elements of the lamp or luminaire design the same except for the phosphor location.

    A fair comparison first requires the same baseline LED technology with matching performance for use in both approaches. Cree builds white LEDs and royal blue LEDs in the XLamp XT-E family using the same manufacturing platform with matching wavelength and radiant flux power. The wafers that will become white LEDs are coated with phosphor while those destined to be blue LEDs are left bare. The LEDs are packaged identically in the 3.45×3.45-mm XT-E form factor. The application engineering team at the Cree Santa Barbara Technology Center (SBTC) assembled the blue and white LEDs into separate modular light engines based on a 9×9 array of LEDs.

    Creedffig2
    FIG. 2. For the remote-phosphor downlight and lamp constructions, the application team made a phosphor-coated disc and a phosphor-coated bulb-shaped optic. The SBTC team used the same warm white phosphor targeting 3000K CCT that was used in the warm white XT-E LEDs. The engineering team also obtained some commercially-available remote phosphor optics for comparison. The SBTC team chose to evaluate disc and bulb configurations to investigate whether the geometric configuration plays a role in the realized efficacy.

    A fair comparison also should include evaluation of the two approaches in typical operating conditions.The evaluation included 25°C baseline testing as well as high-flux and high-temperature testing. For at-temperature evaluation of the different configurations, the team mounted the light engine on a heat stage at 85°C and waited 30 minutes for the module to reach a steady state condition. During the actual tests, the LEDs were driven at 700 mA giving a system level light output of about 1400 lm.

    Downlight and lamp configurations

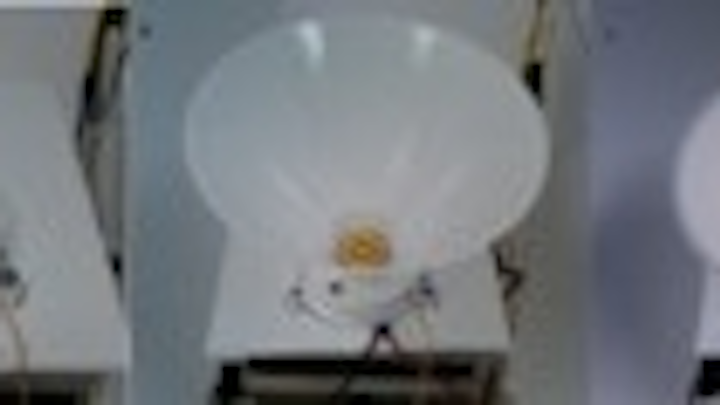

    Having defined the conditions for the testing, let’s move on to the specifics of the downlight and lamp configurations. The team built a 4-in white LED downlight using a light engine with white LEDs, a plastic reflective cone, and a 4-in polycarbonate diffuser (Fig. 1). For the remote phosphor version, the team used a royal-blue light engine, a white plastic reflective cone, and the large and small phosphor-coated discs discussed previously (Fig. 2). In each of the figures you can see the two light engines mounted on the aforementioned heat stage.

    Creedftable1

    TABLE 1. For the retrofit lamp test, the team used the same light engines mounted on the heat stage. To test the white LEDs, a 35-mm-diameter glass globe with a diffuser coating was placed on top of the light engine (Fig. 3). For the remote phosphor lamp, the team tested its own glass optic and the commercial one (Fig. 4).

    Tabulated measurements

    Now let's consider the data gathered during the actual test starting with the downlight. The team took flux measurements in a variety of conditions, summarized in Table 1 for the downlight comparison.

    The baseline light output from the bare white LEDs at 85°C steady state condition was 1234 lm. In order to compare the white LEDs fairly with the remote phosphor system, the team measured the white LED flux in a white reflector and then with the diffuser disc to simulate the typical downlight application scenario. The application-level measured flux was 1146 lm, and that is the value used as the baseline for comparison with the remote phosphor system.

    Creedftable2
    TABLE 2. Using the royal-blue light engine, the team characterized the three remote phosphor discs. The smaller commercial disc resulted in different distance between the light engine and secondary optic as you can see in Fig. 2. With the Cree phosphor disc, the light output was 1324 lm – a 15% increase over the 1146-lm baseline. For the commercially available phosphor discs, the light output was 1363 lm (19% increase), and 1322 lm (15% increase) for the large and small discs respectively.

    Now let’s consider the test of the retrofit lamps (Table 2). The baseline light output from the bare white LEDs is 1234 lm, the same as the downlight baseline. The light output for the white LEDs with diffuser bulb added is 1099 lm at the 85°C steady-state temperature. The tested optic had a light diffuser coating, typical of retrofit lamps although some products might feature higher diffuser loading which would result in a lower light output. The 1099-lm figure served as the baseline for comparing the remote phosphor system.

    Creedffig3

    FIG. 3. With the royal blue light engine, the team characterized the two bulb-shaped, phosphor-coated optics. The Cree phosphor bulb had a measured light output of 1326 lm at 85°C steady state, a 20.6% increase over baseline. The commercial phosphor bulb had a light output of 1127 lm at 85°C steady state, a 2.5% increase over baseline.

    Thermal color stability

    The application team also measured color shift of the tested lights from the chromaticity at 25°C to that at 85°C. We won’t detail those results here, although they will be available at a later time on the Cree website. But we will summarize the results.

    Creedffig4
    FIG. 4. In the case of the white LEDs, the phosphor is placed on the LED chip. The phosphor temperature can therefore be very close to the junction temperature of the LED, around 90°C when the heat stage is at 85°C. The conversion efficiency of the phosphor can drop with increasing temperature, thus there will be less yellow light from the phosphor and the overall LED color will shift toward blue. Generally speaking, the remote-phosphor systems don’t exhibit as much color shift over the temperature delta.

    Of course the lamp or luminaire design team can easily accommodate color shift by testing products at temperature. Moreover LED component vendors such as Cree are increasingly binning components at 85°C so the product designer can be assured how the components will perform in application.

    Creedffig5

    FIG. 5. Given that our tests with remote-phosphor systems in different configurations have shown increased light output, you may think that the approach is clearly superior. Our tests were comparable to actual applications such as a recessed downlight, or a lamp in a pendent or a wall sconce. But the evaluation doesn’t end until we consider why the remote-phosphor system showed an advantage and consider the cost tradeoffs of each approach.

    How it works

    In an integrated white LED, the phosphor is very close to the chip, either as a thin coating or embedded in a silicone encapsulant matrix. The blue light generated by the LED chip emits in all directions. Some of the light rays will interact with the phosphor on the LED chip resulting in a conversion into yellow light. Actually the converted light consists of many different wavelengths, but the spectral distribution is primarily yellow. These yellow rays are also emitted in all directions and some of them will reflect back to the LED chip and be absorbed, resulting in an efficiency loss (Fig. 5).

    In comparison, in a remote phosphor system, the phosphor is placed far from the LED chip. As the blue light reaches the phosphor and excitation-emission process occurs, the yellow light from the phosphor emits in all direction as in the white LED, but since the LED chip is far away, the chances of these yellow rays hitting the chip and being absorbed is significantly lowered. As long as the remote phosphor system is well designed with a high-efficiency reflector that redirects yellow light reflected downward, the overall efficiency in a remote phosphor system will be higher than in the case of the white LED.

    Cost tradeoffs

    So finally we come to a rough cost comparison of our approaches. You can always add LEDs to make a light engine brighter. And you must account for the entire system cost of each approach.

    Creedffig6
    FIG. 6. Consider the following example scenario. You can build a typical 1000-lm downlight using 10 LEDs at a total cost or around $17.00 based on an LED cost of about $1.70. If you need to realize a gain of 20% in light output, you have two choices. You can add 2 additional LEDs increasing the component cost by $3.40. Or you could go to a remote-phosphor design based on our measurements presented in the article. Typical phosphor discs are currently priced at $15.00 on a distributor’s web site, although you might get a price more in the range of $8.00 in high volume.

    Lighting system designers and integrators must decide which approach best fits their application. The remote-phosphor approach does offer the advantage of color stability. Conversely in some applications, lighting designers or end customers prefer a white look as opposed to the yellow tint of remote phosphor optics when the lamp or luminaire is off.

    Our comparison shows that remote-phosphor systems can provide light output gain of 20% in a high flux, high temperature environment. For now those gains come with an increase in system cost and potentially patent-licensing fees. Product designers must determine if one or the other approach is best for their specific application. But until the cost of remote phosphor comes down, white LEDs will likely be the dominant choice for general lighting applications.
